同步带连接方法及安装使用注意事项

来源:http://www.huafengxiangsu.com 时间:2022-07-26 11:04:36 浏览次数:0
同步带是以钢丝绳或玻璃纤维为强力层,外覆以聚氨酯或氯丁橡胶的环形带,它综合了皮带传动、链传动、齿轮传动的优点。传动时,传动比准确,对轴作用力小,结构紧凑,耐油,耐磨性好,抗老化性能好,下面来讲讲同步带连接方法及安装使用注意事项。
Synchronous belt is an annular belt with steel wire rope or glass fiber as the strong layer and polyurethane or neoprene as the outer cover. It integrates the advantages of belt drive, chain drive and gear drive. During transmission, the transmission ratio is accurate, the force on the shaft is small, the structure is compact, the oil resistance, wear resistance and aging resistance are good. Next, let's talk about the connection method of synchronous belt and the precautions for installation and use.
同步带的连接方法
Connection method of synchronous belt
1、用高分子的溶剂胶胶水。
1. Use polymer solvent glue.
2、要把皮带两边打成对齿,可以接驳起来;一般来说只有开口同步带会需要向同步带接驳起来,不过也有在同步带断裂或者磨损的情况下需要将同步带接驳起来。
2. The two sides of the belt should be paired and connected; Generally speaking, only the open timing belt needs to be connected to the timing belt, but there are also cases where the timing belt needs to be connected when it is broken or worn.
3、用加压加热的压机,设定一定时间、压力,等皮带温度到了冷却下来,放置一会就好了。
3. Use a press that is pressurized and heated, set a certain time and pressure, and wait for the belt temperature to cool down, and then place it for a while.
同步带安装注意事项
Precautions for timing belt installation
1、安装同步带时,如果两带轮的距可以移动,须先将带轮的距缩短,装好同步带后,再使距复位。若有张紧轮时,先把张紧轮放松,然后装上同步带,再装上张紧轮。
1. When installing the synchronous belt, if the center distance of the two pulleys can be moved, the center distance of the pulley must be shortened first, and then the center distance can be reset after installing the synchronous belt. If there is a tension wheel, loosen the tension wheel first, then install the synchronous belt, and then install the tension wheel.
2、往带轮上装同步带时,切记不要用力过猛,或用螺丝刀硬撬同步带,以防止同步带中的抗拉层产生外观觉察不到的折断现象。设计带轮时,好选用两轴能互相移近的结构,若结构上不允许时,则好把同步带与带轮一起装到相应的轴上。
2. When installing the synchronous belt on the pulley, remember not to use excessive force or pry the synchronous belt hard with a screwdriver to prevent the tensile layer in the synchronous belt from breaking imperceptibly. When designing the pulley, it is better to choose the structure that the two shafts can move close to each other. If the structure does not allow, it is better to install the synchronous belt and pulley on the corresponding shaft together.

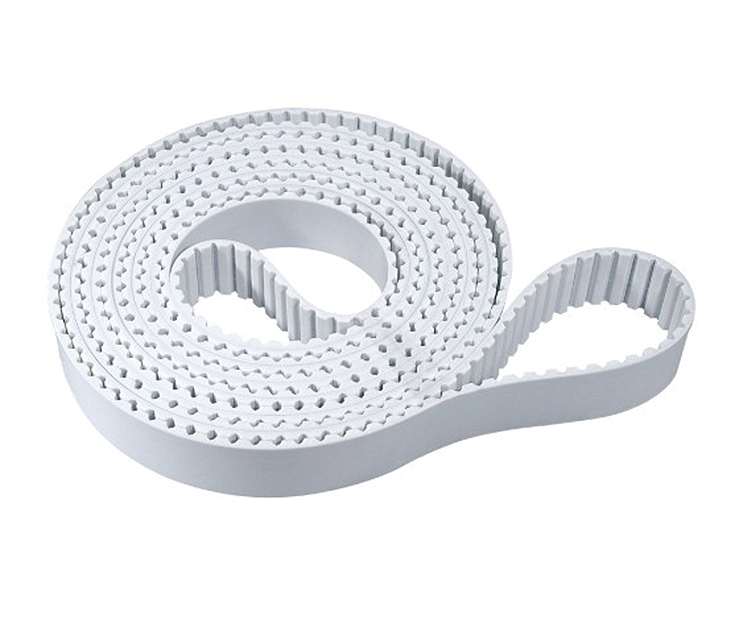

山东同步带
3、控制适当的初张紧力。
3. Control the appropriate initial tension.
4、山东同步带传动中,两带轮轴线的平行度要求比较高,否则同步带在工作时会产生跑偏,甚跳出带轮。轴线不平行还将引起压力不均匀,使带齿早期磨损。
4. In Shandong synchronous belt drive, the parallelism of the axes of the two pulleys is required to be relatively high, otherwise the synchronous belt will deviate and even jump out of the pulley when working. Non parallel axes will also cause uneven pressure and early wear of belt teeth.
5、支撑带轮的机架,须有足够的刚度,否则带轮在密码锁运转时就会造成两轴线的不平行。
5. The frame supporting the pulley must have sufficient stiffness, otherwise the two axes will not be parallel when the pulley operates in the password lock.
输送带、同步带这类属于持久性易耗品,日常使用要多注意维护,要储备1-2条替换备用,一旦发现同步带出现问题或断裂,可及时进行维修替换,以免影响生产、造成损失!更多相关内容就来我们网站http://www.huafengxiangsu.com看看吧。
Conveyor belts and synchronous belts are durable consumables. Pay more attention to maintenance in daily use. Reserve 1-2 replacement belts for standby. Once the synchronous belt is found to have problems or breaks, it can be repaired and replaced in time to avoid affecting production and causing losses! Come to our website for more relevant content http://www.huafengxiangsu.com Take a look.
