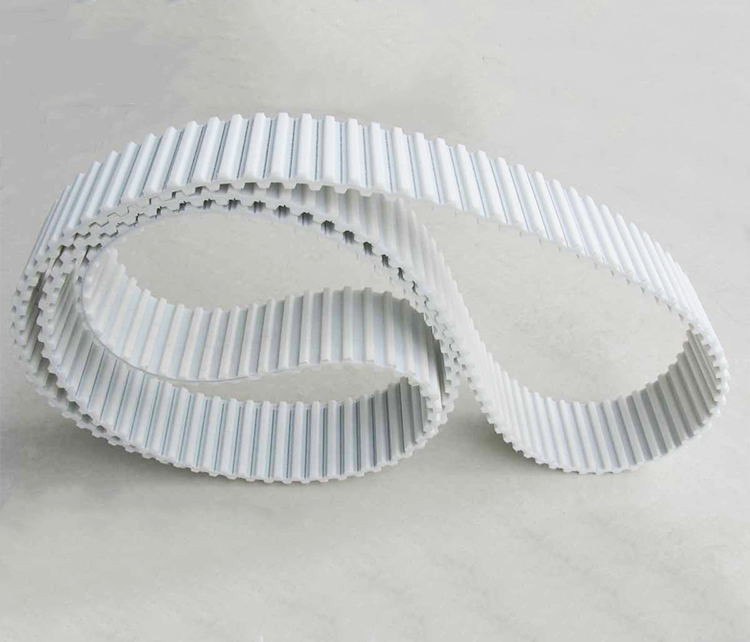

同步带在工业皮带中应用比较广泛，同时规格也是比较多的，各种规格参数看得我们眼花缭乱！那么如何确认同步带的规格参数，以免造成不必要的损失呢？今天小编就分享一下确认同步带规格的方法，希望可以帮助到大家！
Synchronous belts are widely used in industrial belts, and there are many specifications. We are dazzled by various specifications and parameters! So how to confirm the specifications of the timing belt to avoid unnecessary losses? Today, Xiaobian will share the method of confirming the specification of timing belt. I hope it can help you!
1.确认齿数（（在旧皮带上数一下有多少个齿）
1. Confirm the number of teeth ((count the number of teeth on the old belt)
2.测量同步带的节距（两齿中间为节距，请测量11个齿的节距）
2. Measure the pitch of the synchronous belt (the pitch is between the two teeth, please measure the pitch of 11 teeth)
3.测量皮带的宽度
3. Measure the width of the belt
4.测量皮带的厚度
4. Measure the thickness of the belt
此外同步带规格参数的不同选择也要不同，比如：
In addition, different choices of timing belt specifications and parameters should also be different, such as:
选型时应与皮带式齿型相匹配，即XL型皮带配XL型同步轮。具体的皮带长度可以在皮带长度系列中查看。皮带轮齿数可从说明书中选择，其他齿数可从说明书中选择，可以定制。
Type selection should match the belt tooth type, that is, XL belt is equipped with XL synchronous pulley. The specific belt length can be viewed in the belt length series. The number of belt teeth can be selected from the manual, and the number of other teeth can be selected from the manual, which can be customized.
这种选择的依据是同步带的校核主要以功率校核为主，即在考虑负载的加减速时，其所接受的负载功率不能超过平稳运行时的允许功率，并且有少量的齿轮齿。按照说明书，齿数过少，偏斜过大，会缩短使用寿命。因此，应在定位精度要求范围内选择较大的同步轮。
The basis for this selection is that the verification of synchronous belt is mainly based on power verification, that is, when considering the acceleration and deceleration of load, the load power it receives cannot exceed the allowable power during smooth operation, and there are a small number of gear teeth. According to the instructions, too few teeth and too large deflection will shorten the service life. Therefore, a larger synchronous wheel should be selected within the required range of positioning accuracy.
山东同步带轮与皮带型只需匹配齿型即可，即XL型皮带配XL型同步带轮。具体皮带长度可以查看皮带长度系列。皮带轮的优选齿数可从手册中选择，其他齿数可定制。其检查主要是功率检查，即在考虑负载加减速时，其所接受的负载功率不能超过平稳运行时的允许功率。
Shandong synchronous belt pulley and belt type only need to match the tooth type, that is, XL belt with XL synchronous belt pulley. You can check the belt length series for specific belt length. The preferred number of teeth of the pulley can be selected from the manual, and other numbers of teeth can be customized. The inspection is mainly power inspection, that is, when considering the acceleration and deceleration of the load, the accepted load power cannot exceed the allowable power during smooth operation.
Through this article, I hope it can help you choose synchronous belts. We are a manufacturer specializing in producing synchronous belts for many years. If you have synchronous belt related needs, you can contact us directly by phone or follow our website http://www.huafengxiangsu.com Look at the relevant information.
