切菜机输送带的有哪些修复方法

来源:http://www.huafengxiangsu.com 时间:2022-07-28 18:20:52 浏览次数:0
切菜机输送带在使用中容易受到货物等的磨损,经过很长时间后其表层会受到损伤,影响正常生产。那么切菜机输送带的有哪些修复方法?
The conveyor belt of the vegetable cutting machine is easy to be worn by goods in use, and its surface will be damaged after a long time, affecting normal production. So what are the repair methods for the conveyor belt of the vegetable cutting machine?
为有效解决胶带破损层清理过程中的时间和能源消耗问题,实现一次性机械化完成,提高维修效率,厂家可通过科学加工工装实现以下一种重型输送带维修前的处理:
In order to effectively solve the problem of time and energy consumption in the cleaning process of the damaged layer of the belt, realize the one-time mechanized completion and improve the maintenance efficiency, the manufacturer can realize the treatment before the maintenance of the following heavy conveyor belt through scientific processing tooling:
主要包括传动、损坏层三部分的切割和表面抛光机构的去除,工装上配有电机、电器柜、,由电控箱控制电机驱动,输出辊子末端的传动机构包括设备,以及输送辊子的输送线本体,将橡胶带的维护量放在输出辊子上,通过转动输出向前运行,而切割结构损伤层是设置在输出辊道上的滚切生产线。
It mainly includes the cutting of the transmission and damaged layer and the removal of the surface polishing mechanism. The tooling is equipped with a motor, an electrical cabinet, and is driven by the motor controlled by the electric control box. The transmission mechanism at the end of the output roller includes equipment, as well as the conveying line body of the conveying roller. The maintenance amount of the rubber belt is placed on the output roller and runs forward by rotating the output. The damaged layer of the cutting structure is a rolling cutting production line set on the output roller table.

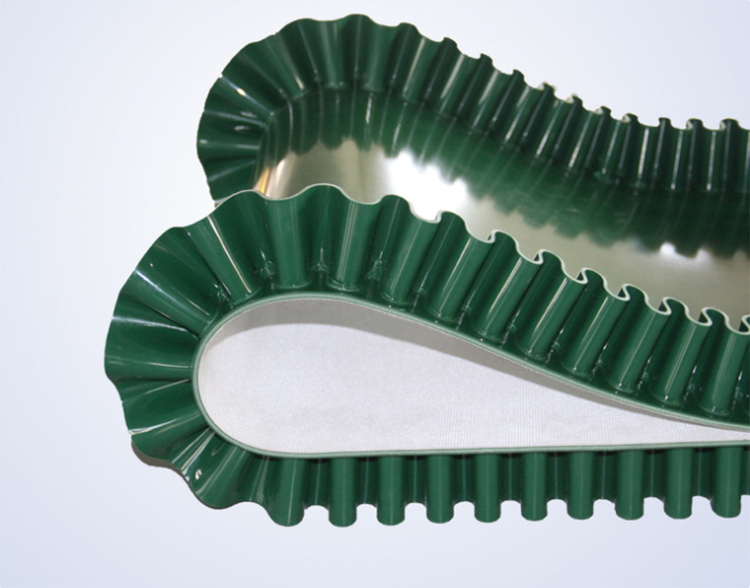

切菜机输送带
包括辊道轴和贴在辊道上的切刀一起构成切刀辊结构,切刀辊之间的距离根据切菜机输送带的厚度调整,胶带通过辊道与切刀之间的距离切削刃只会去除受损的一层。清洗结构一般布置在带式输送机线体的后端,由电机驱动的旋转辊布置在传动辊顶部附近。表面附有清洁刷,可实现对损坏的环形切菜机输送带进行快速研磨去除表面的功能。
It includes the roller table shaft and the cutter attached to the roller table to form the cutter roller structure. The distance between the cutter rollers is adjusted according to the thickness of the conveyor belt of the vegetable cutting machine. The belt passes through the distance between the roller table and the cutter, and the cutting edge will only remove the damaged layer. The cleaning structure is generally arranged at the rear end of the belt conveyor line, and the rotating roller driven by the motor is arranged near the top of the driving roller. A cleaning brush is attached to the surface, which can quickly grind the damaged conveyor belt of the circular vegetable cutter to remove the surface.
另外为了更好的实现这套输送带维修工具的维修和自洁效果,切菜机输送带生产厂家在上部结构的打磨上安装了一个可吸收除尘机构,可将杂物打磨组织整体封闭,在粉磨操作中可快速回收所产生的物料,并通过外斗快速排除,方法更方便简单,真正实现了客户对现场输送带的绿化维修作业,实用性高。
In addition, in order to better realize the maintenance and self-cleaning effect of this set of conveyor belt maintenance tools, the manufacturer of the conveyor belt of the vegetable cutting machine has installed an absorbable dust removal mechanism on the grinding of the upper structure, which can completely close the grinding organization of sundries. During the grinding operation, the materials produced can be quickly recycled and quickly removed through the outer bucket. The method is more convenient and simple, and the greening maintenance of the conveyor belt on the site by customers is truly realized, High practicability.
切菜机输送带的有哪些修复方法?以上就是问题的相关解答了,如果您对其有疑惑的话,欢迎来我们网站http://www.huafengxiangsu.com进行咨询了解。
What are the repair methods for the conveyor belt of the vegetable chopper? The above is the relevant answer to the question. If you have any doubts about it, please come to our website http://www.huafengxiangsu.com Consult and understand.
