顺利使用输送带就要做好安装保养事项

来源:http://www.huafengxiangsu.com 时间:2022-05-17 14:42:03 浏览次数:
虽然输送带在使用过程中非常容易操作,但是在安装过程中还是有很多地方需要多加注意,当然定期的保养事项也不能拉下。下面来讲讲相关的内容吧。
Although the conveyor belt is very easy to operate in the process of use, there are still many places that need to be paid more attention in the installation process. Of course, regular maintenance items cannot be pulled down. Let's talk about the relevant content.
在安装输送带之前,一定要检查一些货架的坚固程度,以及货架的支架是否变形。此外,确保机架的对角线相等。在安装过程中,由于一些金属摩擦,会产生一些金属屑和灰尘。在安装过程中,应经常检查托辊等重要部位是否干净。托辊是输送带运行时的重要部件,所以在安装好输送带后,需要检查托辊的转动是否正常、灵活。
Before installing the conveyor belt, be sure to check the firmness of some shelves and whether the supports of shelves are deformed. Also, make sure that the diagonals of the racks are equal. During installation, some metal scraps and dust will be generated due to some metal friction. During the installation process, it is necessary to often check whether the important parts such as idler are clean. The idler is an important part of the conveyor belt during operation, so after installing the conveyor belt, it is necessary to check whether the rotation of the idler is normal and flexible.
输送带的传动滚筒直径与输送带布层的关系、传动滚筒、改向滚筒的配套以及对托辊槽角的要求应根据运输机的设计规定,合理选取。给料方向应顺输送带的运行方向,为减小物料下落时对输送带的冲击应采溜槽,减小物料落差距离。
The relationship between the diameter of the transmission drum of the conveyor belt and the cloth layer of the conveyor belt, the matching of the transmission drum and the redirection drum, and the requirements for the groove angle of the idler shall be reasonably selected according to the design regulations of the conveyor. The feeding direction shall be along the running direction of the conveyor belt. In order to reduce the impact on the conveyor belt when materials fall, chute shall be adopted to reduce the drop distance of materials.
输送带受料段,应缩短托辊间距和采用缓冲托辊为漏料,耐热输送带顺应采用柔软适度的挡料板,以免档料板过硬,刮破输送带的带面。防止输送带负荷启动。输送带发生跑偏,应及时采取措施纠正。不同类型、规格层数的输送带不宜接在一起使用,其接头采用胶接法。输送带的类型、结构、规格、层数应根据使用条件合理选用。
In the material receiving section of the conveyor belt, the distance between idlers shall be shortened and the buffer idlers shall be used for material leakage. The heat-resistant conveyor belt shall adopt a soft and appropriate baffle plate to avoid the baffle plate being too hard and scratching the belt surface of the conveyor belt. Prevent belt load starting. If the conveyor belt deviates, take measures to correct it in time. Conveyor belts of different types, specifications and layers should not be used together, and their joints should be bonded. The type, structure, specification and number of layers of conveyor belt shall be reasonably selected according to the service conditions.

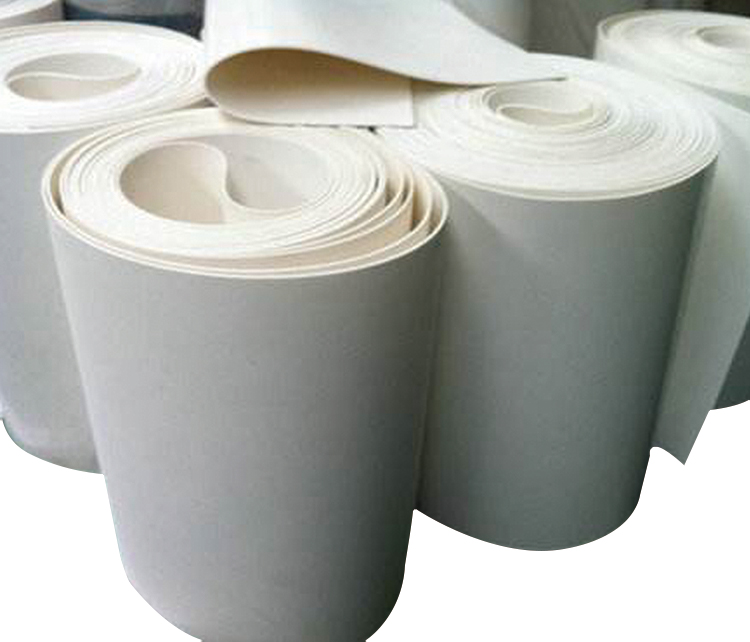

山东输送带
即使大家在安装输送带的时候注意了以上问题,也一定不要忘记经常对输送带进行维护和检查,以免安装不慎留下隐患。
Even if you pay attention to the above problems when installing the conveyor belt, you must not forget to often maintain and inspect the conveyor belt, so as to avoid hidden dangers caused by careless installation.
在运输和储存过程中,输送带应保持清洁,避免阳光直射或雨雪淋湿,防止与酸、碱、油、有机溶剂等物质接触,与输送带保持1米距离加热装置。储存期间,库内温度应保持在-18-40度之间,相对湿度应保持在50-80%之间。储存期间,产品必须成卷放置,不得折叠。贮存期间应每季度翻动一次。
During transportation and storage, the conveyor belt shall be kept clean, avoid direct sunlight or rain and snow, prevent contact with acid, alkali, oil, organic solvent and other substances, and keep 1m away from the conveyor belt from the heating device. During storage, the temperature in the warehouse shall be kept between - 18-40 degrees and the relative humidity shall be kept between 50-80%. During storage, the product must be placed in rolls and shall not be folded. It shall be turned once a quarter during storage.
不同型号、规格的输送带不宜一起使用,接头处应粘胶。输送带的类型、结构和层数应根据使用条件合理选择。输送带的运行速度不应大于2.5m/s。对于结块大、磨损大的物料,应采用定力式卸料装置,尽量采用低速。
Conveyor belts of different models and specifications should not be used together, and the joints should be glued. The type, structure and number of layers of conveyor belt shall be reasonably selected according to the service conditions. The running speed of the conveyor belt shall not be greater than 2.5m/s. For materials with large agglomeration and wear, the fixed force unloading device shall be adopted, and the low speed shall be adopted as far as possible.
山东输送带传动辊筒直径与输送带布层的关系,传动辊筒与换向辊筒的配合,支架角度的要求,应按设计规定合理选择的输送机。
The relationship between the diameter of the transmission roller of Shandong conveyor belt and the cloth layer of the conveyor belt, the coordination between the transmission roller and the reversing roller, and the requirements of the support angle should be reasonably selected according to the design regulations.
送料方向应与胶带运行方向一致。为减少物料下落时对胶带的冲击,应采用溜槽,减少物料下落距离;皮带侧应使用柔软适中的挡板,以免挡板过硬而划伤输送带的带面。
The feeding direction shall be consistent with the running direction of the belt. In order to reduce the impact of falling materials on the tape, chute shall be used to reduce the falling distance of materials; A soft and moderate baffle shall be used on the belt side to avoid scratching the belt surface of the conveyor belt due to the rigidity of the baffle.
输送带在使用过程中也很容易出现故障,甚至会降低输送带的使用寿命,所以相关的使用事项还是要多多去了解的。更多内容就来网站www.huafengxiangsu.com咨询吧。
The conveyor belt is also prone to failure in the use process, which will even reduce the service life of the conveyor belt, so we should know more about the relevant use matters. For more information, please visit www.huafengxiangsu.com Consult. Com.
