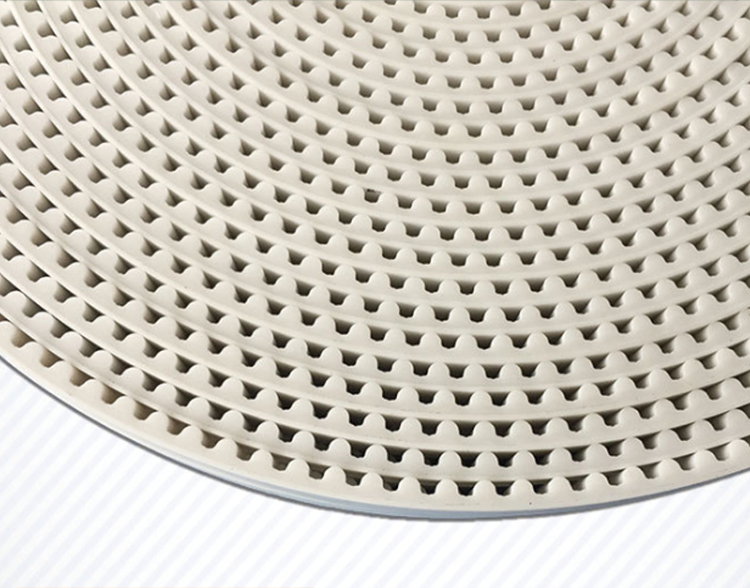

保管和保存同步带需要注意什么?

来源:http://www.huafengxiangsu.com 时间:2022-02-15 17:54:24 浏览次数:0
严禁将同步带强行过度折断弯曲避免强力层损伤,失去使用价值。
It is strictly prohibited to forcibly break and bend the synchronous belt excessively, so as to avoid damage to the strong layer and loss of use value.
不得将皮带长期处于不正常的弯曲状态存放。
Do not store the belt in abnormal bending state for a long time.
保存在阴凉处。
Keep in a cool place.
安装时请缩短距,放松张紧轮,不得强行将同步带从带轮下凸挡边上硬拉拖磨装入。
During installation, please shorten the center distance, loosen the tensioning wheel, and do not forcibly drag and grind the synchronous belt from the convex edge under the pulley.
带轮的齿必须与带的运转方向直角。
The teeth of the pulley must be at right angles to the running direction of the belt.
主动轮与被动轮的主轴的平行度就控制在正切=1/1000左右。轴位不准,直接影响使用寿命。
The parallelism of the main shaft of the driving wheel and the driven wheel is controlled at about tangent = 1 / 1000. Inaccurate shaft position directly affects the service life.
山东同步带
发现主动轮上皮带向一边偏位,应移动一下被动轮加以调整,并调整张紧轮的压力。
If it is found that the belt on the driving wheel deviates to one side, move the driven wheel for adjustment and adjust the pressure of the tensioning wheel.
在起动时,距改变,皮带松驰,发生跳齿现象,应检查带轮机架是否松动,轴的定位有否失准。加以调整加固。
When starting, if the center distance changes, the belt looses and the teeth jump occurs, check whether the pulley frame is loose and whether the positioning of the shaft is inaccurate. To be adjusted and reinforced.
同步带安装时必须按不同的型号和带宽适当的加以张紧力。
The timing belt must be properly tensioned according to different models and bandwidths during installation.
张紧轮且一定要安装在带动的传动松边一侧。
The tensioning wheel must be installed on the loose side of the drive.
以上就是今天带给大家的知识山东同步带专注行业多年,为用户不断的提供有价值的内容,更多内容请继续关注我们:http://www.huafengxiangsu.com
The above is the knowledge brought to you today. Shandong synchronous belt has focused on the industry for many years and continuously provides users with valuable content. Please continue to pay attention to us for more content: http://www.huafengxiangsu.com
